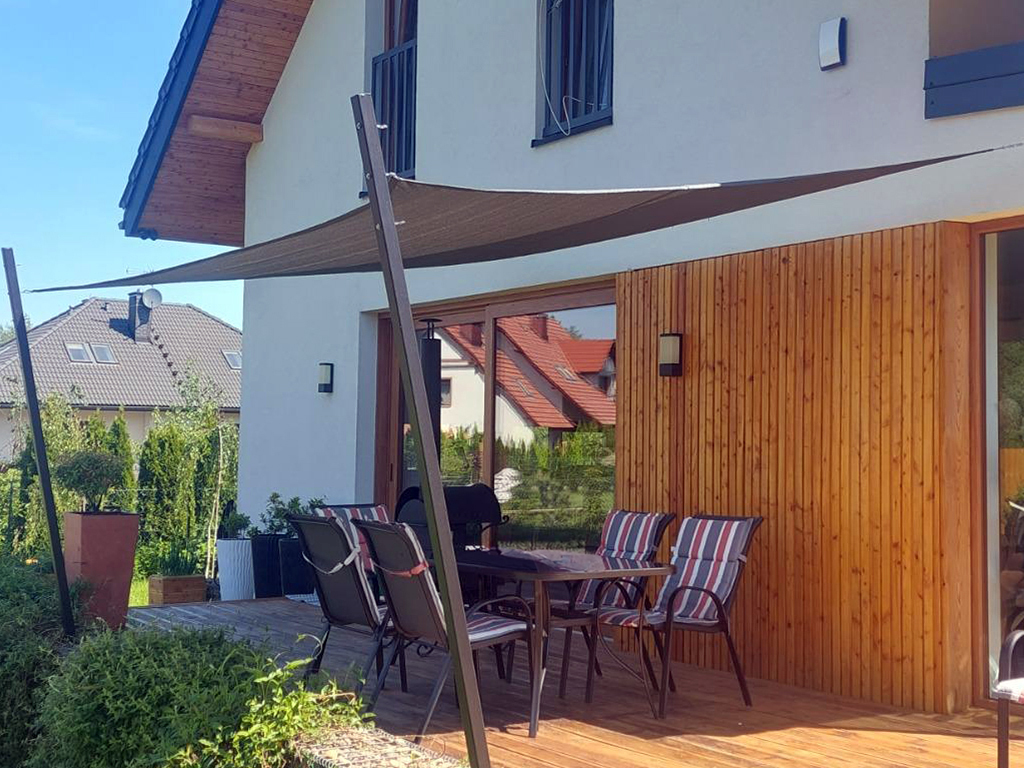

How Much Shade Does a Sun Sail Provide?

A sun sail can provide anywhere from about 60% to approximately 95% shade, depending on the material.

Several factors influence the final shading effect:

the fabric density and structure
the angle of the sun during the day
the height of installation
the orientation of the sail

The higher the sail is installed, the more diffuse the shade becomes. Lower installations create deeper shade and stronger sun protection.

Mesh Sun Sails – Around 60% Shade

Mesh fabric with a weight of 270 g/m² provides approximately 60% shade.

The exact shading level varies during the day depending on the angle of the sun’s rays.

Key characteristics of Mesh sails:

breathable fabric allowing airflow
partial sunlight filtration
reduced heat buildup on surfaces

A 60% shading level is usually sufficient to prevent surfaces such as paving stones, concrete, terrace tiles or windows from overheating.

However, Mesh sails allow a significant amount of light to pass through. They are therefore best suited for:

outdoor dining areas
garden seating areas
terraces where natural light is still desired

For areas designed for relaxation on loungers, reading or working on a laptop, 60% shading may sometimes be insufficient because of sun glare.

In such cases, a denser fabric should be considered.

Premium Decor Sun Sails – Around 95% Shade

Premium Decor fabric (200 g/m²) provides approximately 95% shade, while still allowing the shaded area to remain bright rather than completely dark.

Key advantages of Premium Decor sails:

very high sun protection
pleasant diffused light under the sail
additional protection from light rain

Because of the high shading level, Premium Decor sails are suitable for:

terraces exposed to strong sunlight
outdoor lounge areas
pergolas and garden seating zones

You can see waterproof models here:
waterproof shade sails
https://shade4you.eu/en_GB/c/WATERPROOF-SHADE-SAILS/137

HDPE Sun Sails – High Shade with Airflow

HDPE fabric (285 g/m²) provides a very high level of shading, typically around 95%, while still allowing airflow through the fabric.

This combination makes HDPE sails particularly comfortable during hot summer days.

Key characteristics:

breathable structure
excellent heat reduction
strong UV protection

When installed with a slope, HDPE sails can also partially drain rainwater through the material, making them practical for variable weather conditions.

HDPE sails are a popular solution for:

garden terraces
pergolas
outdoor dining areas
patios exposed to strong sunlight

PVC Sun Sails – Maximum Shade and Rain Protection

PVC fabric (650 g/m²) provides approximately 95% shade and is fully waterproof.

Unlike breathable fabrics, PVC blocks both sunlight and rain.

Advantages of PVC sails:

very strong sun protection
complete rain protection
high durability and resistance to mechanical stress

Because PVC is fully waterproof, sails made from this material must be installed with a proper slope to ensure water drainage.

PVC fabrics are often used in:

pergola shading systems
heavy-duty outdoor installations
commercial terrace coverings

Industrial waterproof models can be found here:
made-to-measure shade sails
https://shade4you.eu/en_GB/

How Installation Height Affects Shade

The height at which the sail is installed significantly affects shading performance.

Lower installation:

stronger and more concentrated shade
better glare protection

Higher installation:

lighter, more diffused shade
larger shaded area

When planning a sun sail installation, the height should therefore be chosen based on the intended use of the space.

Which Shade Sail Fabric Should You Choose?

The best material depends on how the shaded space will be used.

Mesh fabric is suitable for areas where light and airflow are important.
Premium Decor and HDPE provide strong sun protection for terraces and lounge areas.
PVC fabrics are best for installations requiring both shade and rain protection.

Choosing the right material ensures both comfort and durability in outdoor environments.

Summary

Sun sails can provide between 60% and 95% shade, depending on the fabric used.

Mesh fabrics offer around 60% shading and good airflow, while Premium Decor, HDPE and PVC fabrics provide around 95% sun protection. Installation height and orientation also influence the final shading effect.

Selecting the right material ensures comfortable shading for terraces, pergolas and garden seating areas.
